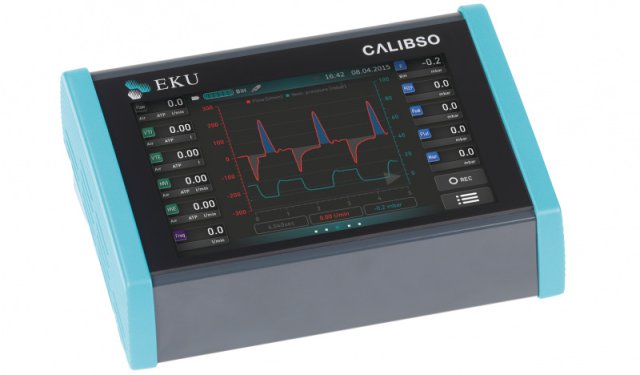

CALIBSO basic unit
With the mobile CALIBSO basic unit EKU Elektronik introduces the latest high-quality measuring device with a central control unit, the CALIBSO touchpad. This capacitive 7" touchscreen enables the clearly arranged display and intuitive operating of all connected measuring modules. With the ergonomic and user-friendly operating concept EKU this generation of devices is well-prepared for all future prospects and individual tasks.
EKU's experience of many years in development and production in the field of respiration and anaesthesia is directly incorporated in the development of new complementary measuring devices and simulators. Besides comfortable measuring and a clearly arranged display the innovative CALIBSO generation undertakes a series of improvements. Thus all device-specific test setups and documentations are and will be integrated. Furthermore a permanent update of the software proceeds in accordance with manufacturers of the test objects.

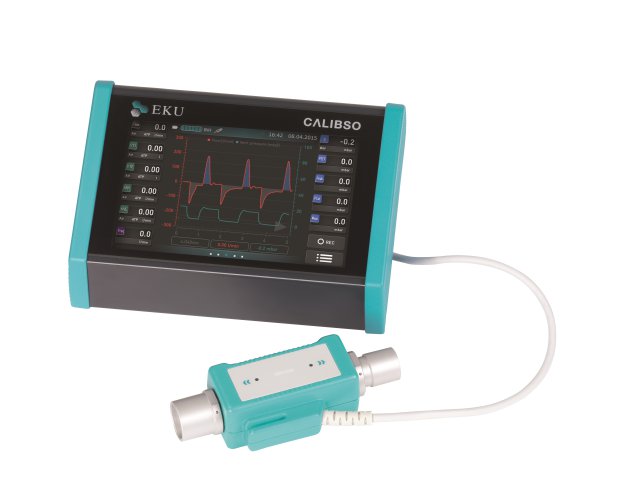

CALIBSO ViPlus Ventilatortester
With its BiFlow-Sensors the CALIBSO ViPlus Ventilatortester offers even more prospects than its successful predecessor model. EKU herewith has realised the requests and suggestions by biomedical engineers who have satisfactorily been working with the ViP Ventilatortester for more than one decade and has made adjustments to their job requirements. In combination with the touchpad the handling becomes easier and more intuitive and is therefore the ideal and flexible solution for service technicians in the field or at the service workplace.
The perfect companion for field work
- handy design with little weight
- easy transport with comfortable carrier bag
- flexibly applicable sensors
- run-time of rechargeable battery for approx. 6 hours
- protocol processing up to printing directly through the device
- immediately ready for use due to standby mode
Features
- 7" capacitive widescreen display with LED backlight
- intuitive operating concept
- 11 parameter displays simultaneously and freely configurable
- 2 measured curves can be displayed simultaneously

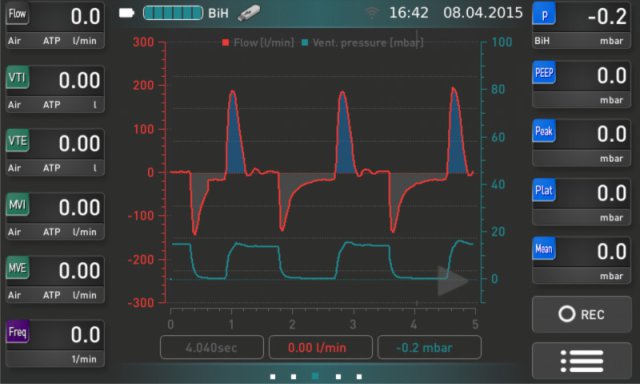

- graphic display of flow and pressure curves and of other parameters
- connection facility for flow sensors BiFlow High and Low
- automatic flow sensor detection
- import / export of display sets
- direct logging
- data logging of all parameters to USB flash drive and SD-card
- printer connection
- optional oxygen measurement
- optional gas measurement IRMA AX+

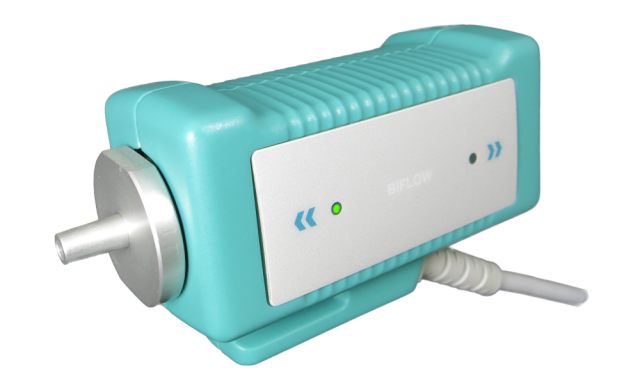

BiFlow-Sensor Low-Flow
Flow Sensors
The BiFlow-Sensors with integrated measuring of humidity and ventilation pressure offer highest flexibility for bidirectional flow measurement by being connected to the CALIBSO ViPlus individually. Furthermore the BiFlow-Sensors can be sent separately for the annual calibration, independently from the basic unit CALIBSO ViPlus.

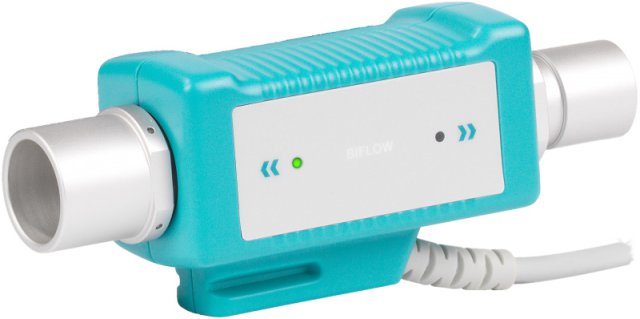

BiFlow-Sensor High-Flow
Measuring parameters BiFlow-Sensor High-Flow:
(±300 L/min)
- Flow Air
- Flow O2
- Flow Air/O2 Mix
- Vti
- Vte
- MVi
- MVe
- Frequency
- Ventilation pressure
- PEEP
- Peak
- Plateau
- MEAN
- I/E
- Ti
- Te
- Tip
- TepHumidity
- Insp. Peak Flow
- Exp. Peak Flow
- HFO Pmean
- HFO PMax
- HFO PMin
- HFO amplitude
- HFO frequency
- HFO I/E
Measuring parameters BiFlow-Sensor Low-Flow:
(±12 L/min)
- Flow Air
- Flow O2
- Flow Air/O2 Mix
- Vti
- Vte
- MVi
- MVe
- Frequency
- Ventilation pressure
- PEEP
- Peak
- Plateau
- MEAN
- I/E
- Ti
- Te
- Tip
- Tep
- Humidity
- Insp. Peak Flow
- Exsp. Peak Flow
- HFO Pmean
- HFO PMax
- HFO PMin
- HFO amplitude
- HFO frequency
- HFO I/E

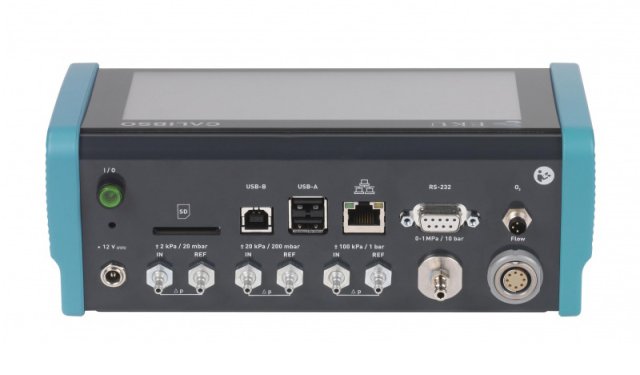

Measuring parameters CALIBSO ViPlus basic unit:
- differential pressure ±20 mbar
- differential pressure ±200 mbar
- differential pressure ±1 bar
- high pressure 0 – 10 bar
- ambient pressure
Further measuring parameters:
- O2-concentration (optional)
- gas concentration (optional see IRMA AX+ sensor)

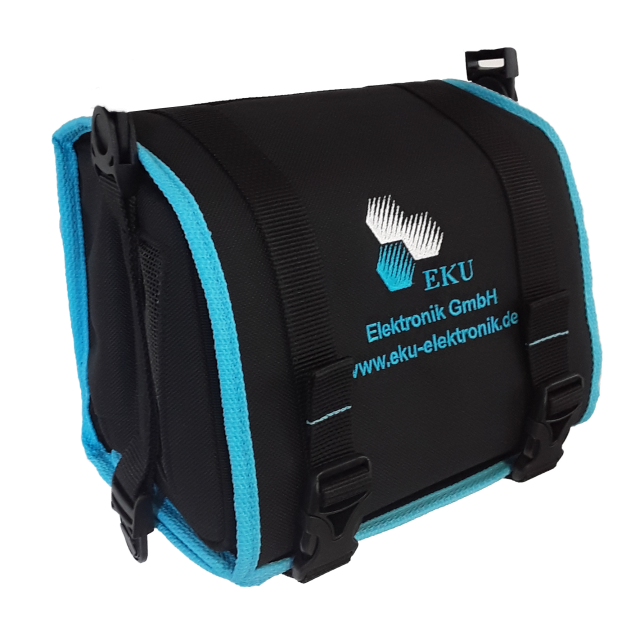

CALIBSO carrier bag
- optimal protection
- plenty of space for accessories

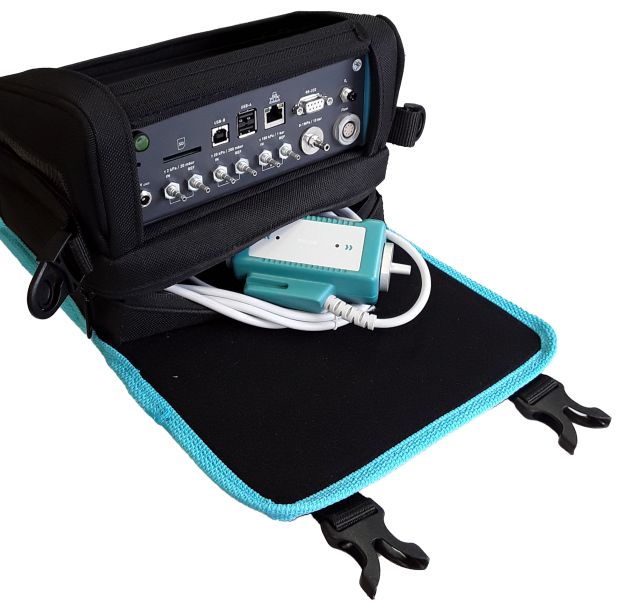

- device can be operated while it is still in the bag
Accessories (optional):

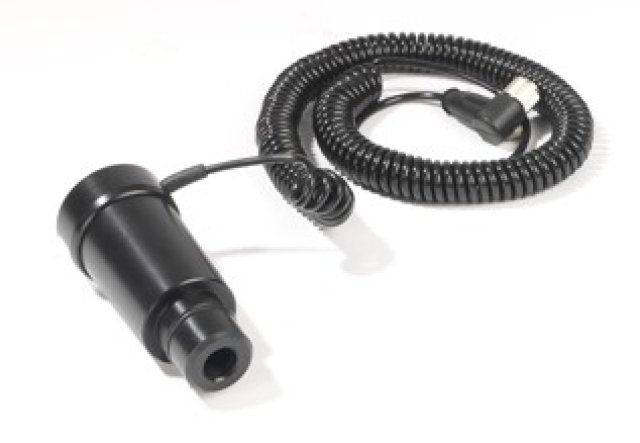

O2-Sensor

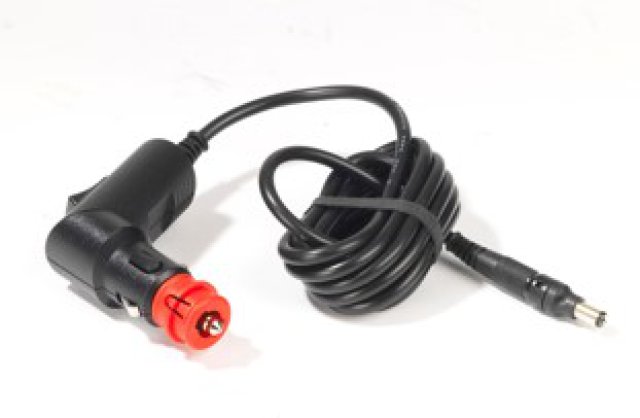

vehicle power supply

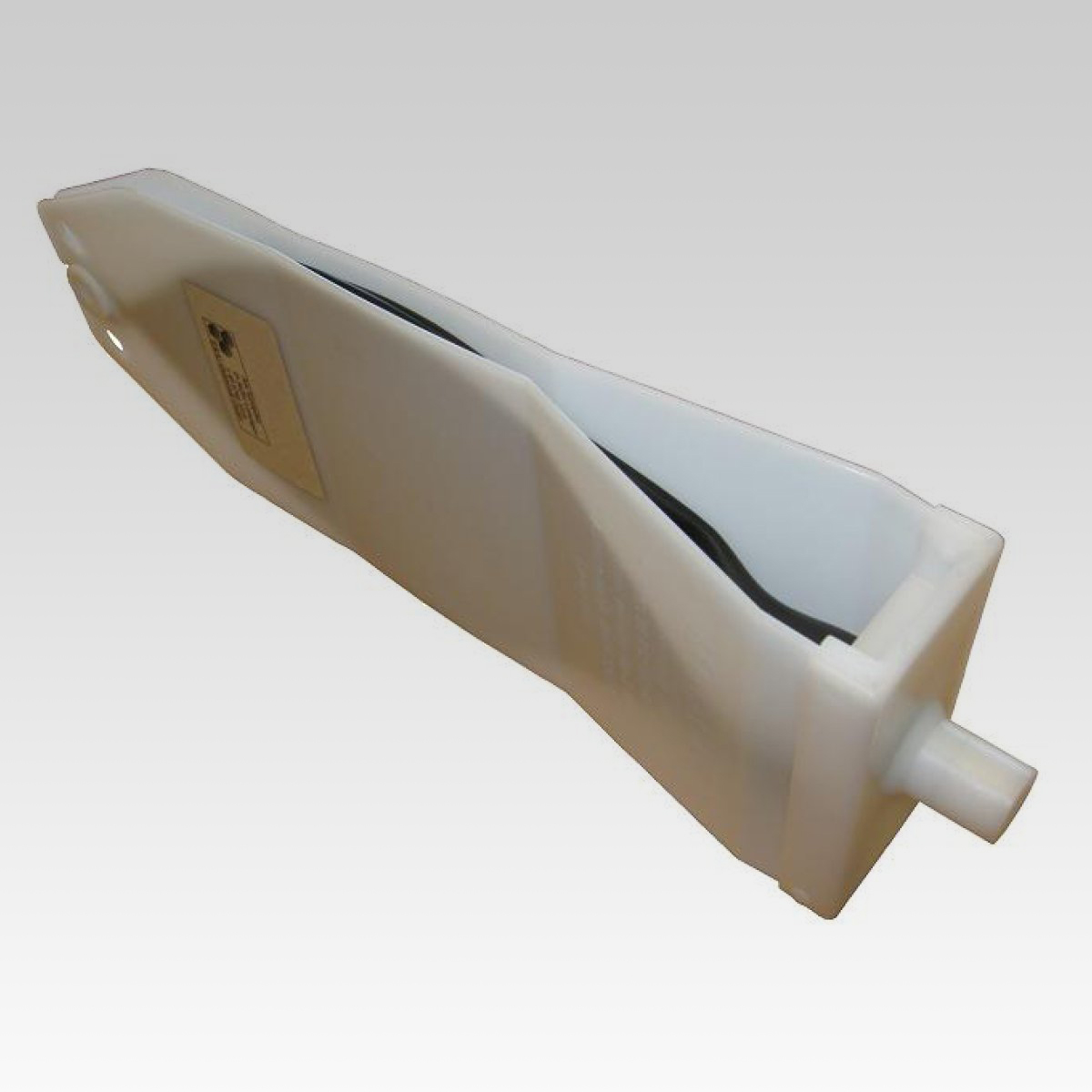

test lung

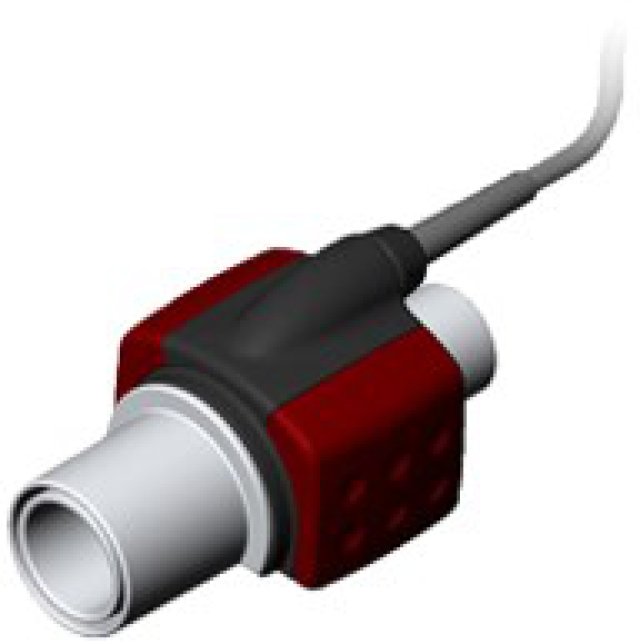

MultiGas Analyser
Service
For the maintenance and calibration of our measuring devices on a regular basis we offer a factory calibration service which is geard to the TIS standard with DAkkS-DKD-5. Regular maintenance increases the long-life cycle of your measuring device and ensures full functionality.
For more information about our maintenance and calibration service please see here.
